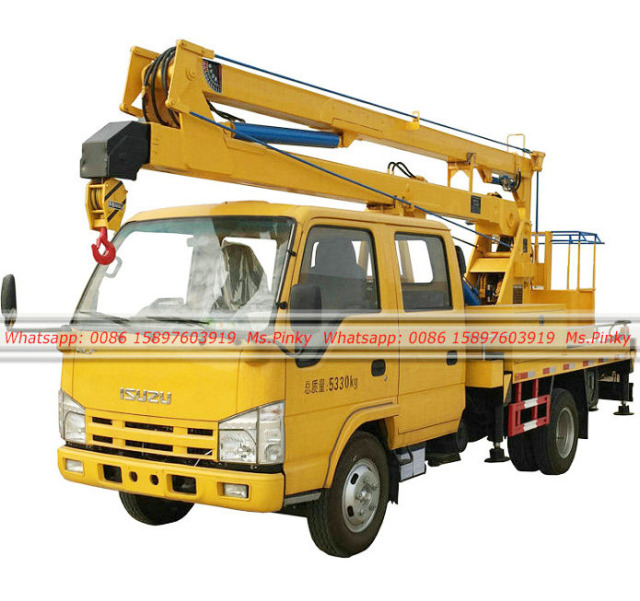

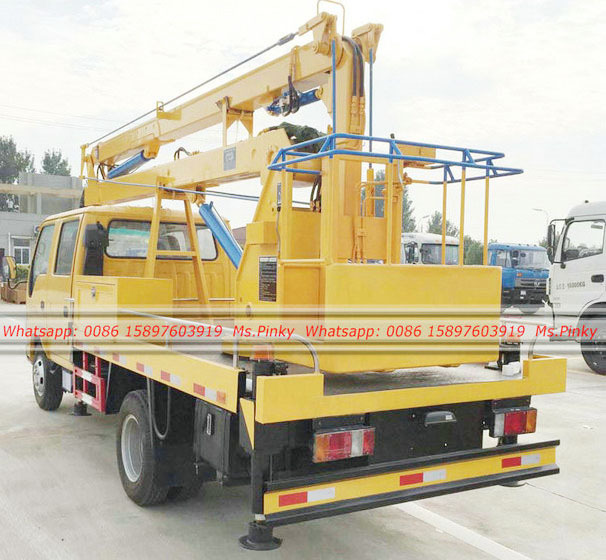

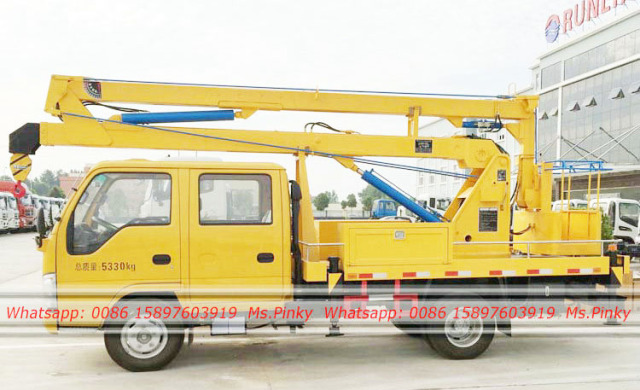

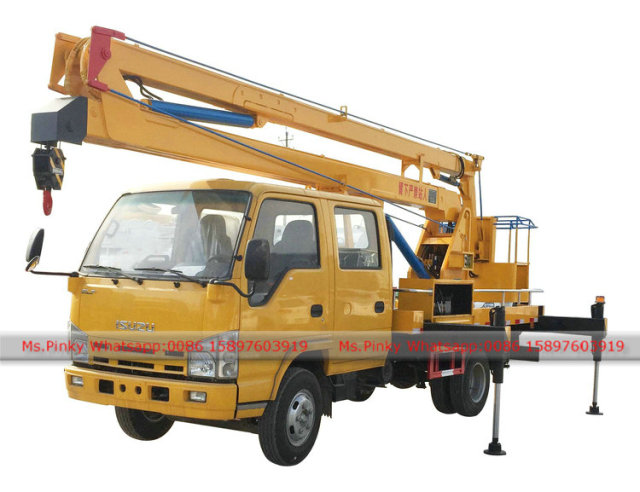

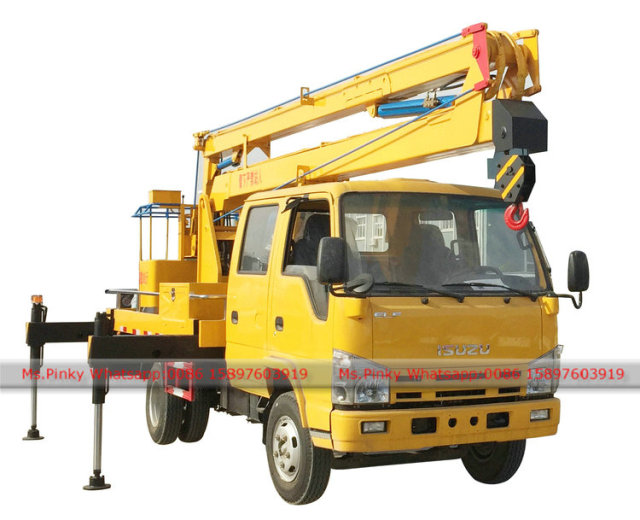

| Aerial platform Truck ISUZU (10-14M) | ||
| General | Chassis Brand | ISUZU |
| Overall Dimension | 7650 x 2100 x 3250 mm | |
| GVW / Kerb Weight | 6,810 kg / 6,485 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1CN5LS | |
| Power | 98HP (72KW) | |
| Displacement | 2777 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.00-16 or 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |

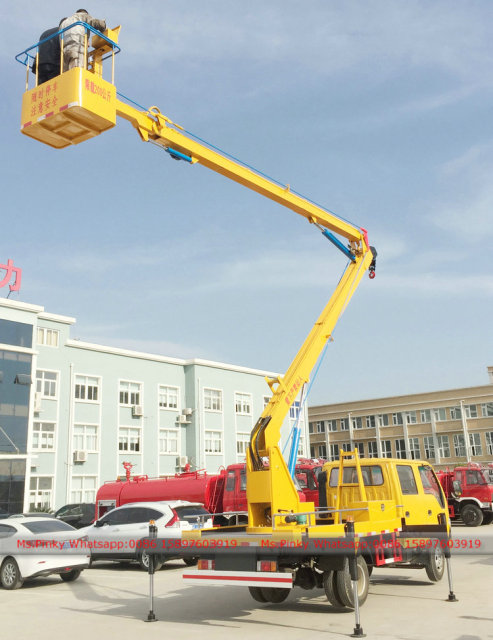

| Working Height | 10 m~ 14 m | |

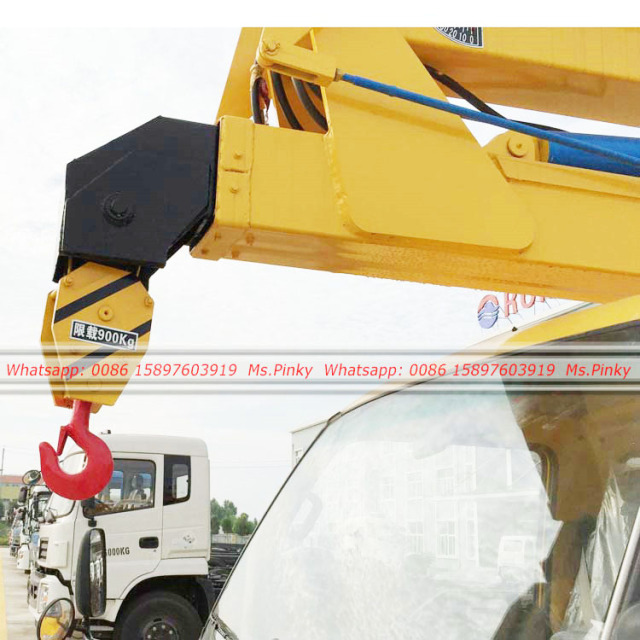

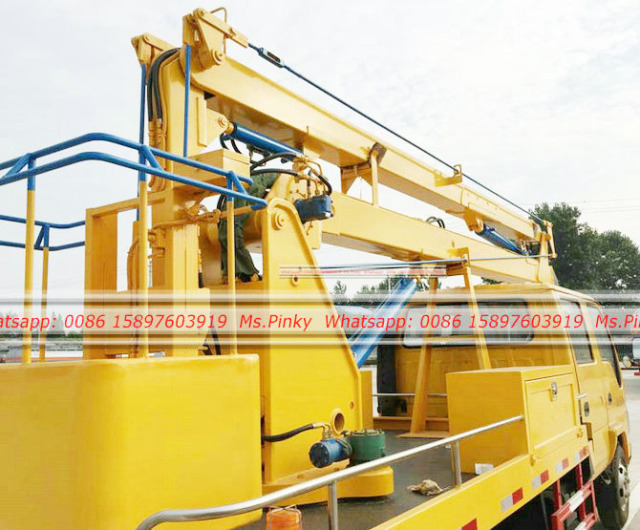

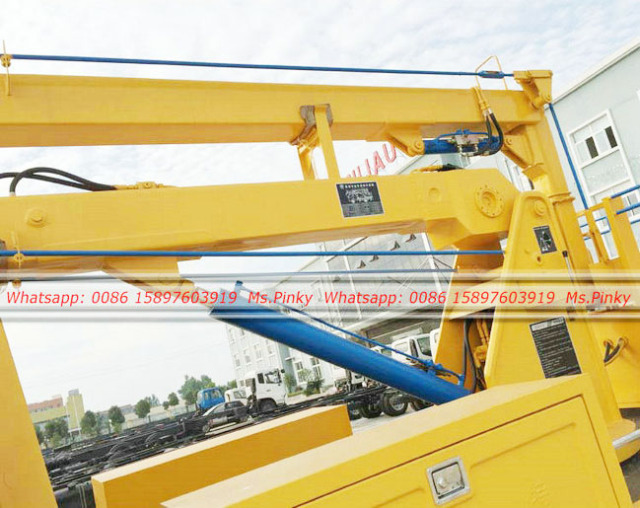

| Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |

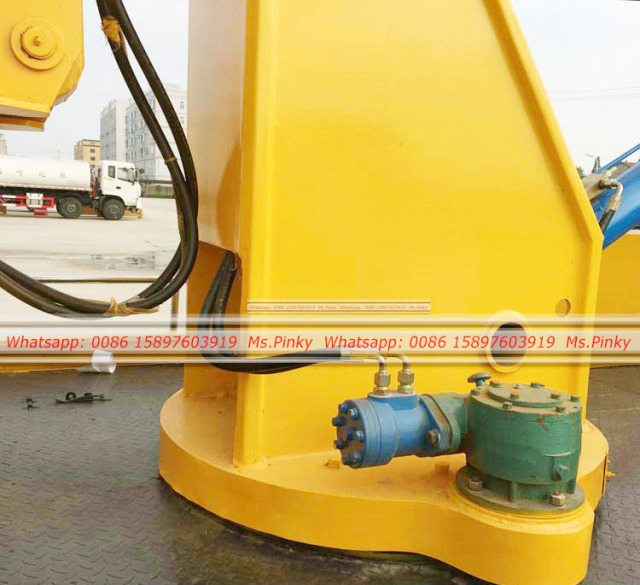

| Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. | |

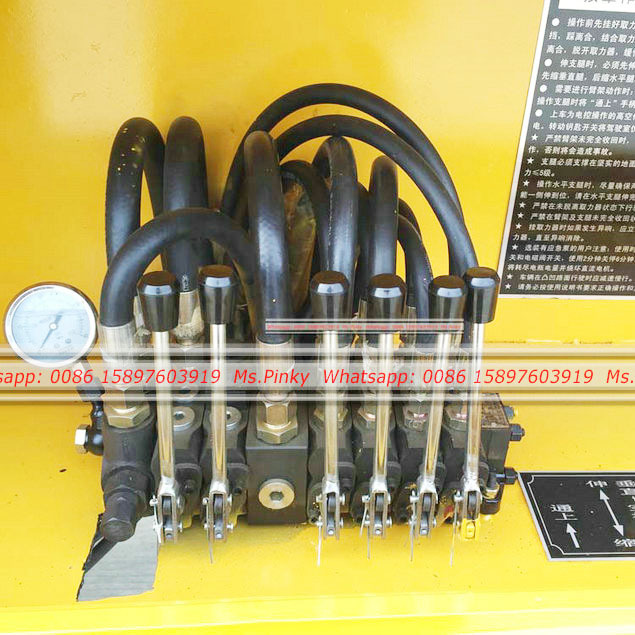

| Control | Control both on the ground and remote control in cage | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
| Optional | Insulated cage; Wireless remote control system | |
